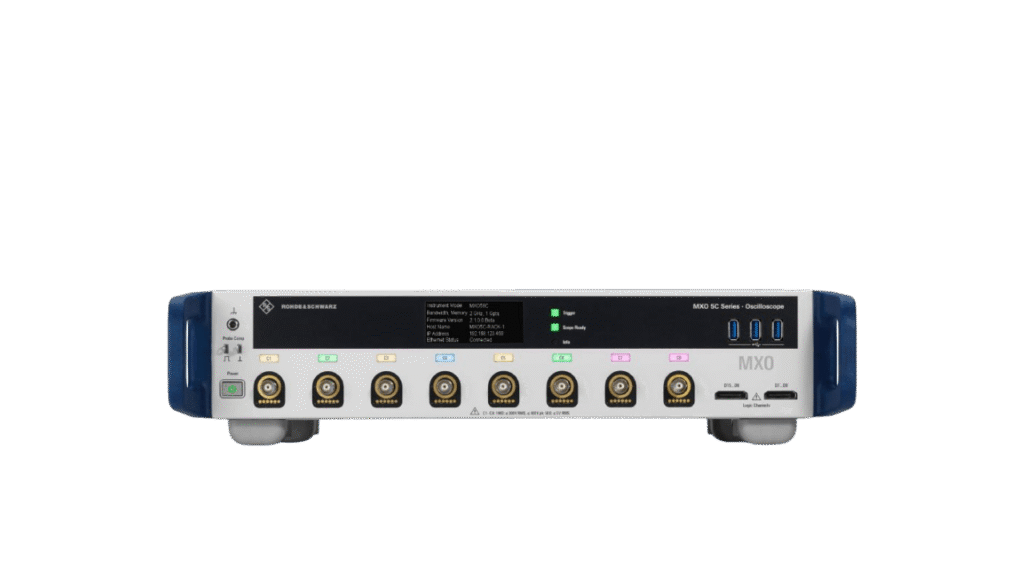

| 產品型號 | 頻寬 | 通道數 |
|---|---|---|
| MXO5C-43 | 350 MHz | 4 |
| MXO5C-45 | 500 MHz | 4 |
| MXO5C-81 | 100 MHz | 8 |
| MXO5C-82 | 200 MHz | 8 |
| MXO5C-83 | 350 MHz | 8 |
| MXO5C-85 | 500 MHz | 8 |
| MXO5C-410 | 1 GHz | 4 |
| MXO5C-420 | 2 GHz | 4 |
| MXO5C-810 | 1 GHz | 8 |
| MXO5C-820 | 2 GHz | 8 |
軟體選項
| 軟體型號 | 軟體類型 | 軟體說明 |
|---|---|---|
| R&S SPLUS | Compliance Tests | R&S®ScopeSuite+, base software for compliance test |
| R&S SPLUS-K24 | Compliance Tests | 100BASE-T1 automotive Ethernet compliance test |
| R&S SPLUS-K87 | Compliance Tests | 1000BASE-T1 automotive Ethernet compliance test |
| R&S SPLUS-K89 | Compliance Tests | 10BASE-T1S automotive Ethernet compliance test |
| R&S SPLUS-K99 | Compliance Tests | remote automation API for R&S®ScopeSuite+ |
| R&S MXO5-K12 | General Analysis | Basic jitter analysis |
| R&S MXO5-K31 | General Analysis | Power analysis: Harmonics, quality, efficiency, switching loss, safe operating area and trun on/off time measurement |
| R&S MXO5-K36 | General Analysis | Frequency response analysis (Bode plot) |
| R&S MXO5-K500 | Serial Triggering & Decoding | Bus analysis: bus measurements and analysis functions |
| R&S MXO5-K510 | Serial Triggering & Decoding | Low speed serial buses (I2C/SPI/QuadSPI/UART/RS-232/RS-422/RS-485/NRZ clocked/ NRZ unclocked/Manchester) |
| R&S MXO5-K520 | Serial Triggering & Decoding | Automotive protocols (CAN/CAN FD/CAN XL/LIN/SENT) |
| R&S MXO5-K530 | Serial Triggering & Decoding | Aerospace protocols (ARINC 429/MIL-STD-1553/SpaceWire) |
| R&S MXO5-K550 | Serial Triggering & Decoding | MIPI low speed protocols (SPMI/RFFE/I³C) |
| R&S MXO5-K560 | Serial Triggering & Decoding | Automotive Ethernet protocols (10BASE-T1S) |
| R&S MXO-PC-K1 | 電腦端應用軟體 | Serial bus option for R&S ScopeStudio |
| R&S MXO-PC | 電腦端應用軟體 | R&S ScopeStudio 波形分析軟體 |
| R&S MXO5C-K12 | General Analysis | Basic jitter analysis |
| R&S MXO5C-K31 | General Analysis | Power analysis: Harmonics, quality, efficiency, switching loss, safe operating area and trun on/off time measurement |
| R&S MXO5C-K36 | General Analysis | Frequency response analysis (Bode plot) |
| R&S MXO5C-K136 | General Analysis | Eye analysis: Include software based CDR with support of baud rate up to 5 Gbps |
| R&S MXO5C-K500 | Serial Triggering & Decoding | Bus analysis: bus measurements and analysis functions |
| R&S MXO5C-K510 | Serial Triggering & Decoding | Low speed serial buses (I2C/SPI/QuadSPI/UART/RS-232/RS-422/RS-485/NRZ clocked/ NRZ unclocked/Manchester) |
| R&S MXO5C-K520 | Serial Triggering & Decoding | Automotive protocols (CAN/CAN FD/CAN XL/LIN/SENT) |
| R&S MXO5C-K530 | Serial Triggering & Decoding | Aerospace protocols (ARINC 429/MIL-STD-1553/SpaceWire) |
| R&S MXO5C-K550 | Serial Triggering & Decoding | MIPI low speed protocols (SPMI/RFFE/I³C) |
| R&S MXO5C-K560 | Serial Triggering & Decoding | Automotive Ethernet protocols (10BASE-T1S/100BASE-T1/1000BASE-T1) |
